DESCRIPTION
POLYMER-MODIFIED, MULTI-USE REPAIR MORTAR
DESCRIPTION
TAMMS THIN PATCH is a polymer-modified, cement based mortar formulated for repairing defects in concrete and masonry surfaces from featheredge up to 1” (2.54 cm).
PRIMARY APPLICATIONS
- Horizontal, vertical or overhead repairs • Interior and exterior use
- single-component
- Trowelable repair mortar
- Long-term durability
- Outstanding bond strength
- high-strength
- user-friendly
TECHNICAL INFORMATION
Material Properties @ 75°F (24°C)
Set Times ASTM C 266
Initial set………………………………approx. 30 to 50 minutes
Final set…………………………………….approx. 1 to 2 hours
Compressive Strength psi (MPa) ASTM C 109
7 day………………………………………………..3,000 (20.7)
28 day………………………………………………3,500 (24.1)
Split Tensile Strength psi (MPa) ASTM C 496
7 day…………………………………………………….300 (2.1)
28 days………………………………………………..410 (2.8)
Flexural Strength psi (MPa) ASTM C 348
7 days…………………………………………………….630 (4.3)
28 days………………………………………………..725 (5.0)
Shrinkage %ASTM C157
7 day……………………………………………………..-0.008%
28 days……………………………………………….-0.050%
Scaling Resistance ASTM C 672
50 cycles………………………………………………..0% loss
SHELF-LIFE
1 year in original, unopened package
PACKAGING
TAMMS THIN PATCH is packaged in 25 lb (11.3 kg) plastic pails, and 50 lb (22.7 kg) poly lined bags
COVERAGE/YIELD
A 50 lb (22.7 kg) bag of TAMMS THIN PATCH will yield approximately 0.4 ft3 (0.01 m3) of material. Applied at the following thicknesses, one 50 lb (22.7 kg) bag of TAMMS THIN PATCH will cover:
1/4“ (6.3 mm) 19.2 ft2 (1.78 m2)
1/2” (12.7 mm) 9.6 ft2 (.891 m2)
1” (25.4 mm) 4.8 ft2 (.445 m2)
Note: Coverage rates are approximate and are for estimating purposes only
DIRECTIONS FOR USE
Surface Preparation: Concrete surfaces must be structurally sound, free of loose or deteriorated concrete and free of dust, dirt, paint, efflorescence, oil and all other contaminants. Mechanically abrade the surface to achieve a surface pro le of CSP 4 or greater in accordance with ICRI Guideline 310.2. Properly clean pro led area.
priming: Clean and prime exposed steel with DURALPREP AC. Concrete should be primed with a spray or brush coat of DURALPREP AC. The primer coat of DURALPREP AC must be allowed to thoroughly dry prior to the application of the repair mortar. Alternately, a Saturated Surface Dry (SSD) concrete surface can be primed with a scrub coat of TAMMS THIN PATCH. The repair must be made before the scrub coat dries out.
mixing: One 50 lb (22.7 kg) bag of TAMMS THIN PATCH will require 3.25 to 3.5 qt (3.1 to 3.3 L) of potable water. Mix TAMMS THIN PATCH in a clean container using a slow speed drill and mixing blade. Pour clean water into the clean container and gradually add the TAMMS THIN PATCH. Mix thoroughly to disperse all ingredients and to achieve a trowelable consistency. Do not use excess water, and do not retemper TAMMS THIN PATCH.
Application: Apply sufficient pressure to ll all holes and voids, then trowel to a smooth finish. On large areas, use a screed to obtain a uniform level before troweling. Do not overtrowel. TAMMS THIN PATCH will achieve initial set in approximately 40 minutes; nal set in approximately 1 hour, and cures within 24 hours under normal drying conditions. Maximum thickness of application is 1″ (25mm) per lift. When applying multiple lifts, allow prior lift to reach final set, score the surface then place the subsequent lift.
CLEANUP
Clean all mixing and application equipment with water immediately following use. If material is allowed to dry on a surface, removal becomes extremely difficult.
PRECAUTIONS/LIMITATIONS
- Do not apply to frozen or frost filled surfaces, at temperatures below 40°F (4°C) or if temperature is expected to fall below 40°F (4°C) within 24 hours.
- Application temperatures below 60°F (16°C) will extend set time.
- On windy or hot days or for application in direct sunlight, use wet burlap or plastic sheet for curing.
- Do not use TAMMS THIN PATCH in joints or cracks that are subject to movement.
- Do not apply TAMMS THIN PATCH in more than 1” (25 mm) deep lifts.
- Do not over-work or over-trowel the repair.
- Do not add more water than recommended.
- Protect from rain for 24 hours after placement.
- In all cases, consult the Material Safety Data Sheet before use.

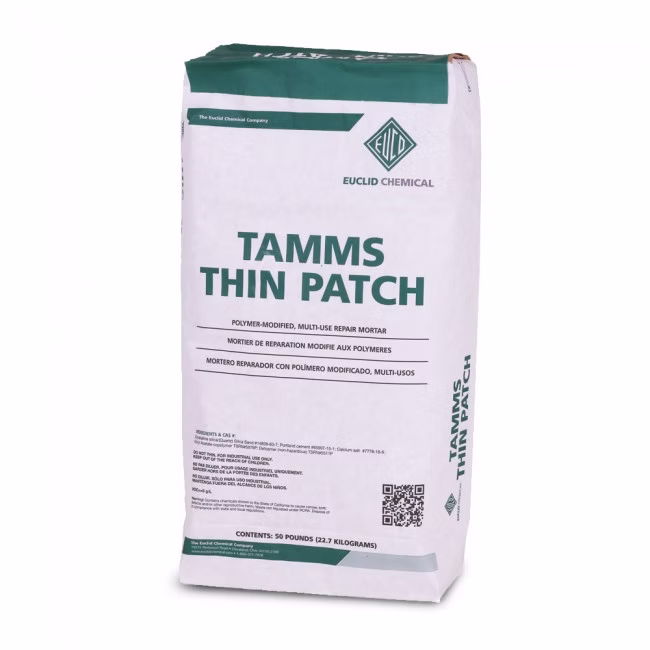

TAMMS THIN PATCH
Polymer-Modi ed, Multi-use Repair Mortar
TAMMS THIN PATCH is a polymer-modified, cement based mortar formulated for repairing defects in concrete and masonry surfaces from featheredge up to 1” (2.54 cm).
